L110-F2G - Managed Ethernet Switch

The L110-F2G is a 10 port device that is suitable for advanced layer 2 switching in industrial application with extreme operating conditions. It has eight fixed 10/100/BaseTX ports and two Gigabit SFP ports that support pluggable modules, enabling you to choose from a variety of transceivers.

To ensure the network resilience, Lynx+ supports STP (Spanning Tree Protocol) and RSTP (Rapid STP), and also features Westermo´s unique FRNT (Fast Recovery of Network Topology) redundant ring functionality. This is the fastest protocol on the market to automatically reconfigure a large network in the event of any line or hardware failure. FRNT is able to reconfigure a redundant ring network consisting of up to 200 switches within 20 ms, regardless of network load. STP/RSTP and FRNT can be combined enabling L110-F2G to be integrated with products from other vendors in redundant network solutions.

L110-F2G - Managed Ethernet Switch


  • Industrial managed switch made for harsh environments
  • Multirate transceiver support (100Mbit or 1 Gbit)
  • Real time Ethernet
    • True industrial specification
    • Full metal housing
    • IP40
    • Wide temperature range (–40°C to +70°C)
    • Wide DC power range (19 to 60 VDC)
    • No moving parts or electrolytic capacitors
    • Low power consumption
    • Redundant power input with polarity protection
    • High MTBF numbers
  • VLAN, FRNT, STP/RSTP, VLAN, IGMP Snooping, QoS , SNMP, SSH, DHCP client, DDNS
  • Configurable alarm concept
  • CLI and Web configuration

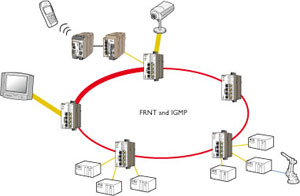

Diagram
